Disparity Augmentation for Image Manipulation Detection

Overview

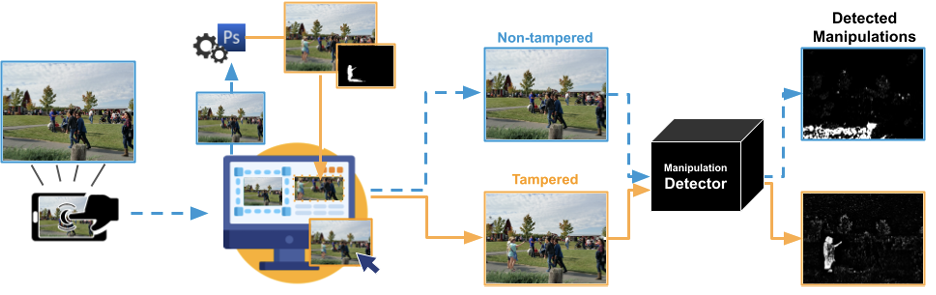

Image doctoring and splicing present ongoing challenges for digital forensics. Forensic algorithms generally look for localized physical inconsistencies, including sensor noise variations, demosaicing discrepancies, and quantization mismatches between spliced content and the authentic background.

Under practical social media distribution conditions, these assumptions often fail:

1. Automated compression (such as repeated lossy JPEG encoding), downsampling, spatial filtering, and transcoding erode subtle pixel-level forensic cues.
2. Forensic detectors are typically evaluated on datasets where every image contains a tampering event. In operational settings, however, detectors encounter large volumes of authentic, unedited imagery. Under these conditions, natural scene textures, lighting variations, and salient objects frequently trigger false alarms.

This work was funded by the Defense Advanced Research Projects Agency (DARPA) under the Media Forensics (MediFor) program and the Air Force Research Laboratory (AFRL), under agreement FA8750-20-2-1004. We evaluated the operational performance of forensic detectors under realistic social media conditions, developed an Anomaly Enhancement Network (AEN) to accentuate subtle tampering traces through disparity augmentation, and released pyIFD, an open-source Python toolkit for image forgery detection.

Evaluated algorithms and forensic categories

We benchmarked classical learning-free and deep learning-based algorithms across four core categories:

1. JPEG compression artifacts

JPEG encoding divides images into $8 \times 8$ pixel blocks, applies a Discrete Cosine Transform (DCT), and quantizes high-frequency coefficients using compressor-specific tables. Tampering can introduce boundary and quantization mismatches:

• BLK (Block Artifact Grid): Models the luminance grid to detect grid misalignments from cloning or splicing. While effective under uniform settings, it is sensitive to false alarms caused by natural high-contrast scene textures.
• DCT (Discrete Cosine Transform Analysis): Estimates the primary JPEG quantization table to measure discrepancies in the local quantization history of individual $8 \times 8$ blocks.
• ELA (Error Level Analysis): Re-compresses an image at a known quality factor to measure compression error deltas. Regions modified more recently undergo fewer compression generations, showing different error rates than the background.

2. Color Filter Array (CFA) interpolation discrepancies

Digital cameras record color through a Bayer Color Filter Array, requiring demosaicing to interpolate full RGB channels. Splicing content from different sensors can disrupt these periodic patterns:

• CFA1: Combines camera CFA pattern estimation with local noise variance modeling to identify disrupted pixel relationships.
• CFA2: Computes tampering probabilities over localized $2 \times 2$ pixel neighborhoods for finer-grained localization.
• Limitation: Both methods degrade when imagery undergoes downscaling, spatial rotation, or heavy video re-compression, as these operations remove demosaicing signatures.

3. Noise variance inconsistencies

Camera sensors produce characteristic noise profiles based on hardware, ISO gain, and temperature. Splicing content from external sources distorts this distribution:

• NOI1: Tiles high-pass diagonal wavelet coefficients into non-overlapping sub-blocks, segmenting regions where local standard deviations deviate from stationary white Gaussian noise.
• NOI2 (Projection Kurtosis Regularity): Relies on the property that band-pass filtered natural images exhibit a constant positive projection kurtosis. NOI2 performs blind global noise estimation and identifies local variance outliers.
• NOI4 (Median Filter Residual): Computes the pixel-wise difference between the input image and its median-filtered counterpart, using the high-frequency residual as a forensic fingerprint.

4. Deep learning architectures

• Mantra-Net: A Manipulation Tracing Network with a VGG feature extraction backbone trained across 385 fine-grained manipulation types, paired with an LSTM anomaly detection head to localize feature divergences.
• RGBN: A two-stream Faster R-CNN architecture that processes RGB pixel streams (capturing boundary and contrast anomalies) and noise streams (capturing sensor noise disturbances), fusing both representations via bilinear pooling.

Proposed Anomaly Enhancement Network (AEN)

We evaluated pre-processing anomaly enhancement to improve existing detectors without retraining them. AEN reconstructs the image so that intrinsic tampering traces are magnified in embedding space while authentic background structures remain preserved.

                           +-------------------------------------------------+
                           |             Long Skip Connection                |
                           v                                                 |
Input Image (I) ---> [ Conv 3x3 ] ---> [ RG 1 ] ---> ... ---> [ RG 5 ] ---> [ + ] ---> Reconstructed Image (Î)
                       (Shallow)       |  10x RCAB Blocks     |
                                       |  (Short Skips & CA)  |
                                       +----------------------+

1. Network architecture

The AEN backbone uses a Residual Channel Attention Network (RCAN):

• Shallow feature extraction: A single $3 \times 3$ convolutional layer extracts low-level features.
• Residual Attention Groups (RG): 5 sequential Residual Groups, each containing 10 Residual Channel Attention Blocks (RCAB) connected by short skip connections.
• Channel Attention (CA): Models channel-wise inter-dependencies with global average pooling and gating, prioritizing informative anomaly channels during training.
• Long skip connection: Connects the shallow convolutional output directly to the final reconstruction layer. This preserves low-frequency contextual content while deep residual groups concentrate on high-frequency anomaly disparities.

2. Triplet formulation and multi-objective loss

AEN is trained using patch triplets $(a, p, n)$:

• Anchor patch ($a$): Sampled from class $c \in {c_1, c_2}$ (manipulated or authentic).
• Positive patch ($p$): Sampled from the same class as $a$.
• Negative patch ($n$): Sampled from the contrasting class.

The network reconstructs an enhanced anchor patch $\hat{a}$ optimized across three objectives:

1. Content preservation ($\mathcal{L}_{\text{content}}$): Measures pixel-level reconstruction fidelity between the reconstructed patch $\hat{a}$ and raw input $a$:

   \[\mathcal{L}_{\text{content}} = D(\hat{a}, a)\]

   This prevents smoothing out delicate spatial tampering cues.

2. Intra-class cohesion ($\mathcal{L}_{\text{intra}}$): Minimizes the distance in deep feature space $f(\cdot)$ between $\hat{a}$ and positive patch $p$:

   \[\mathcal{L}_{\text{intra}} = D(f(\hat{a}), f(p))\]

   This encourages authentic regions and manipulated regions to maintain internal statistical consistency.

3. Anomaly enhancement ($\mathcal{L}_{\text{enhancement}}$): Increases feature divergence between $\hat{a}$ and negative patch $n$:

   \[\mathcal{L}_{\text{enhancement}} = 1 - D(f(\hat{a}), f(n))\]

   This increases the distance between the latent distributions of tampered and authentic regions.

Distance $D(x, y)$ is calculated using the Symmetric Mean Absolute Percentage Error (SMAPE), bounding all terms between $0$ and $1$:

Deep features $f(\cdot)$ are extracted with a convolutional network pre-trained on ImageNet.

Experimental setup and benchmark datasets

Evaluations used the official DARPA MediFor Mediscore suite with continuous metrics:

• Grayscale Weighted L1 Loss (GWL1): Measures localization error against continuous confidence maps (lower is better).
• Area Under the ROC Curve (AUC): Evaluates true-positive versus false-positive trade-offs across all detection thresholds (higher is better).

Benchmarked datasets

1. MFC18 Dev and Eval (manipulated): 757 Dev images and 236 Eval images containing splicing, cloning, in-painting, airbrushing, and object removal. On average, manipulated pixels account for 6% of image area in Dev and 10% in Eval.
2. UG2 Glider (pristine aerial frames): 2,778 unmanipulated aerial video frames extracted from 38 videos across 15 object classes. Used to measure false-alarm rates on clean media.
3. Imagenette (web imagery): 3,925 validation images from ImageNet across 10 object classes, containing natural internet compression, contrast adjustments, and watermarks without malicious tampering.

Experimental observations and findings

1. Performance on unmanipulated data

When tested on clean imagery (UG2 Glider and Imagenette), traditional and deep learning algorithms produced high false-positive rates:

• Detectors frequently flagged salient foreground objects with high confidence, reducing AUC scores below 11% for multiple algorithms.
• These detectors assume the image contains two separable classes (manipulated and authentic), misinterpreting natural lighting shifts and textures as tampering.

2. Resilience of noise-based features

• NOI2 (Projection Kurtosis Concentration) achieved the most consistent performance across all datasets.
• On pristine UG2 Glider frames, NOI2 reached a GWL1 error of 0.36%, generating sparse masks consistent with authentic images.
• Because sensor noise profiles remain detectable after repeated JPEG compression cycles, noise variance algorithms outperformed CFA and DCT methods under social media distribution conditions.

3. Impact of AEN pre-processing

• Reduced background noise: AEN suppressed low-confidence spurious artifacts in predicted localization maps while increasing confidence on genuinely tampered regions.
• Quantitative results on MFC18:
  • Improved GWL1 loss for BLK, CFA2, NOI2, and NOI4.
  • Improved AUC across six methods (BLK, ELA, CFA1, NOI1, NOI4, and RGBN).
  • AEN trained on MFC18 Dev translated effectively to unseen Eval images and preserved baseline performance on clean datasets.
• Limitations: For certain compression methods (such as DCT), AEN’s residual reconstruction smoothed subtle $8 \times 8$ block boundaries. Additionally, training on disjoint patches occasionally inverted predictions when the authentic region was smaller or more textured than the tampered region.

Open-source pyIFD toolkit

To provide standardized reference implementations of classical forensics methods in Python, we developed and released pyIFD:

• Pure Python: Implementations of BLK, DCT, ELA, CFA1, CFA2, NOI1, NOI2, and NOI4 without legacy Matlab or Java dependencies.
• Dependencies: Built on NumPy, SciPy, and OpenCV.
• Installation: Available on PyPI:

  pip install pyIFD


• Code repository: https://github.com/EldritchJS/pyIFD

Project details and publications

• Role: Primary Researcher and Algorithm Developer
• Affiliation: Computer Vision Research Laboratory (CVRL), University of Notre Dame
• Sponsorship: Sponsored by the Defense Advanced Research Projects Agency (DARPA) and the Air Force Research Laboratory (AFRL) under agreement FA8750-20-2-1004.
• Authors: Rosaura G. VidalMata, Priscila Saboia, Daniel Moreira, Grant Jensen, Jason Schlessman, Walter J. Scheirer.

Publication

• Title: On the Effectiveness of Image Manipulation Detection in the Age of Social Media
• Links: arXiv:2304.09414
• Code: pyIFD on GitHub
